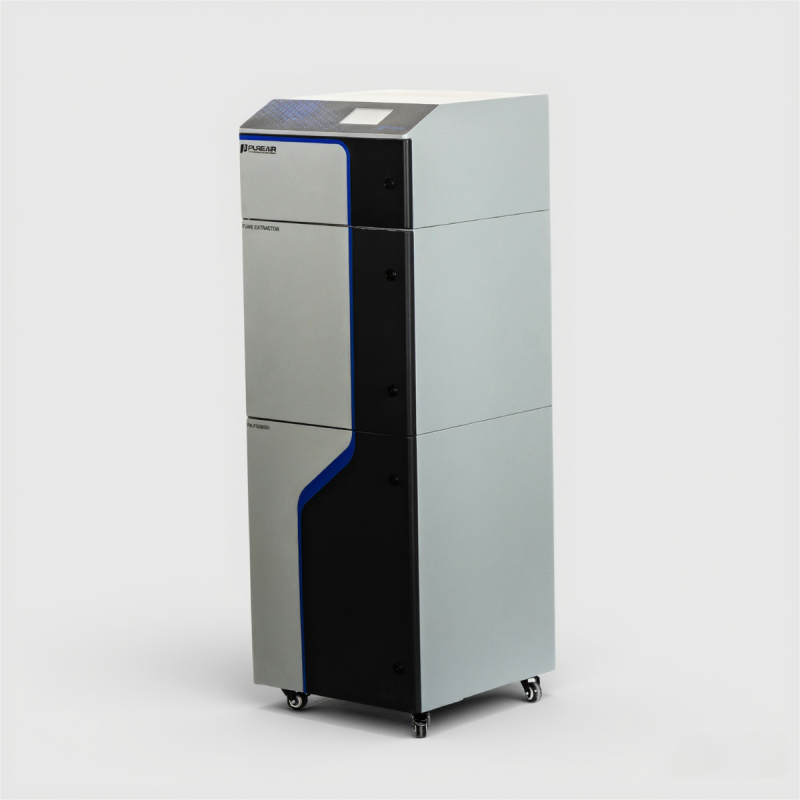

FS800i: 7" HMI touchscreen with VOC/PM2.5/temperature monitoring
Usage scenarios
- Production laser cutting & engraving lines
- Laser & handheld welding stations
- Metal processing / laser cleaning
- Multi-station shop floors

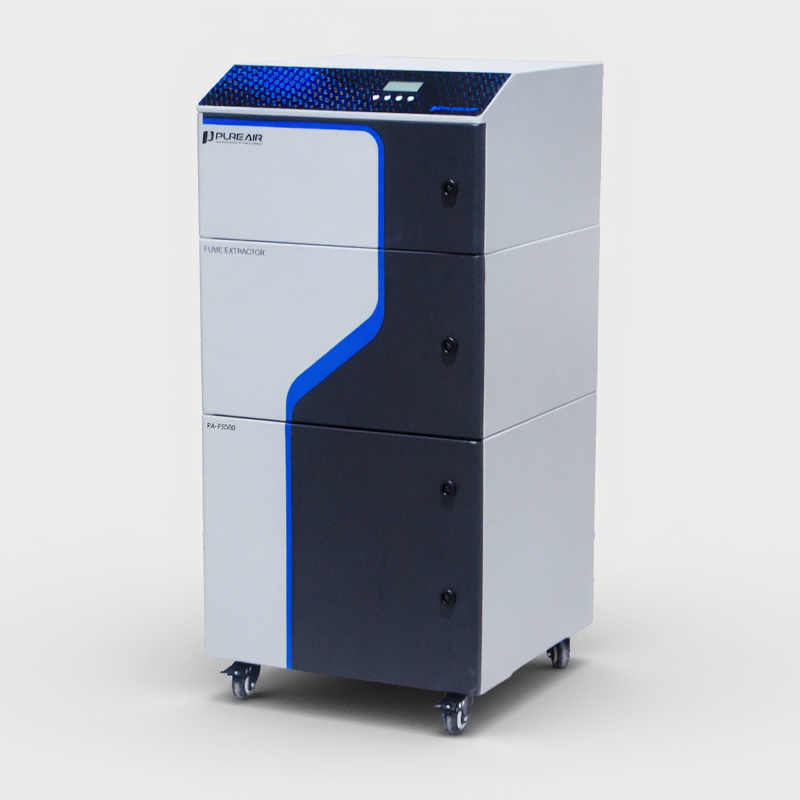

PA-FS800 / FS800i Industrial Extractor
Industrial extraction for 90×130 cm production lasers.
Industrial systems are configured to your machines, duty cycle and duct layout, and ship by freight (LTL). Tell us about your shop and an engineer will respond within one business day.
Usage scenarios
- Production laser cutting & engraving lines
- Laser & handheld welding stations
- Metal processing / laser cleaning
- Multi-station shop floors
Get Factory-Direct Pricing
Engineer reply within 1 business day · volume pricing available
Engineered Ahead of the Spec Sheet
HEPA H14
99.99% @ 0.3 µm
One full grade above the H13 filters common in consumer fume extractors — H14 medical-grade media captures 99.99% of 0.3-micron smoke particles, the size laser fumes actually are.
Up to 10,000 Pa
High negative pressure
Suction that stays strong as filters load. High static pressure keeps capture velocity at the laser bed even months into a filter's life — no fade, no smell creeping back.
90–257 V
Multi-voltage, worldwide
Dual-range input (90–110 V / 210–257 V, 50/60 Hz) means the same unit runs anywhere on earth. Moving your studio abroad? Your extractor comes with you.
Product Details
The PA-FS800 anchors PURE-AIR's production-grade FS range. Choose the FS800i for PIPS intelligent extraction control: a vortex-boosted blower (10–18 kPa), 7-inch HMI touchscreen with VOC/PM2.5/temperature monitoring, dynamic airflow compensation and tool-free 60-second cartridge replacement.
Engineering Specs
| Airflow | 800 m³/h |
| Pressure | 10,000 Pa |
| Noise | < 63 dBA |
| Filtration | Pre + F9 + HEPA H14 + 12-30 kg Carbon |
| Inlet | 100 / 125 mm |
| Size / Weight | 670×769×1356 mm · 86 kg |
| i-Series | 7" HMI · PIPS · VOC/PM2.5 monitoring |
| Works with | 90×130 cm CO2 lasers, Trotec Speedy 400 / Rayjet, Thunder Nova 51, Aeon NOVA 10 / 14 / 16, Epilog Fusion Pro 48, Production engraving lines |
Compliance & Installation Support
Deploying in a commercial facility? We provide documentation support for NRTL field evaluations (e.g., SPE-1000 in Canada), duct sizing guidance, and combustible-dust (NFPA) process reviews so your local inspector signs off the first time.
One Extractor, Every Bench in the Shop
The same triple-stage stack handles particulate and gas-phase pollution across every maker workflow.
Laser Engraving & Cutting
Wood, acrylic, leather, MDF — captures smoke and VOC odor at the exhaust port before it fills the room.
Welding & Soldering
Hand soldering benches and laser welding stations — intercepts flux fume and heavy-metal aerosols at the source.
3D Printing
Resin post-processing and high-temp filament enclosures — clears styrene, VOCs and ultrafine particles.
Electronics & Lab Work
PCB rework, conformal coating and chemical experiments — bench-side extraction with a positionable arm or duct.
Certifications & Compliance
Every PURE-AIR unit ships from an ISO 9001-certified filtration factory with 10+ years of industrial extraction experience.
Compliance documentation (Declaration of Conformity, test reports) is available on request for commercial deployments — talk to an engineer.
